Usage

First of all, the top-level namespace for the package is currently pyeeg. This may change in the future to natmeeg to match the project name. So to import the package, you can do:

import pyeeg
# or
from pyeeg import io, models
# etc

A quick TRF example

For a complete, runnable introduction—with simulated envelope and word-level features, figures, cross-validation, banded ridge, smoothness regularisation, and solver timings—see Tutorials and the A gentle introduction to temporal response functions (TRFs) notebook.

The compact example below shows the essential API. A feature matrix has one row per sample and one column per stimulus feature; the EEG response has one row per sample and one column per channel.

from pyeeg import TRFEstimator
import numpy as np
import matplotlib.pyplot as plt

from scipy.signal import convolve, filtfilt, butter

# Parameters
fs = 100  # Sampling frequency
duration = 30  # Duration in seconds
n_samples = int(fs * duration)  # Number of samples
tmin = -0.5
tmax = 0.5
t_kernel = np.arange(tmin, tmax, 1/fs)  # Time vector for kernel
n_events = 100  # Number of events

# Simulated data
# TRF kernel
peak_time = 0.2  # Time of the peak in seconds (seconds)
width = 0.05  # Width of the Gaussian kernel (seconds)
kernel = np.diff(np.r_[0.0, np.exp(-(t_kernel - peak_time)**2 / (2 * width**2))])  # Gaussian kernel derivative
# Stimuli (smooth continuous one + event based one)
smooth_stimulus = np.random.randn(n_samples,)  # Random stimulus
b, a = butter(4, 15, 'low', fs=fs)  # Low-pass filter (15 Hz)
smooth_stimulus = filtfilt(b, a, smooth_stimulus)  # Filtered stimulus
event_stimulus = np.zeros((n_samples,))  # Event-based stimulus
onsets = np.random.randint(0, n_samples - 1, size=n_events)  # Random event onsets
event_stimulus[onsets] = 1  # Set event onsets to 1
# Convolve stimuli with kernel
y_smooth = convolve(smooth_stimulus, kernel, mode='same')  # Convolve with smooth stimulus
y_event = convolve(event_stimulus, kernel, mode='same')  # Convolve with event stimulus
# Add noise
y = y_smooth + y_event + np.random.randn(n_samples) * 0.1  # Add noise to the signal

# Create TRF estimator
trf = TRFEstimator(tmin=tmin, tmax=tmax, srate=fs, alpha=1.0)
print(np.c_[smooth_stimulus, event_stimulus].shape, y.shape) # 2 features, 1 channel
trf.fit(np.c_[smooth_stimulus, event_stimulus], y[:, None])
print(trf)


# Plot results
f, ax = plt.subplots(4, 2, figsize=(12, 8), sharey='row')
gs = ax[0, 0].get_gridspec()
for a in ax[0, :]: a.remove()
ax_wide = f.add_subplot(gs[0, :])
ax_wide.plot(y, label='Simulated output signal')
ax_wide.plot(smooth_stimulus, label='Smooth feature signal')
ax_wide.plot(event_stimulus, label='Events input')
ax_wide.legend()
# Plot estimated kernels and result
alphas = [0., 1e3]  # Regularisation parameters
for k, aax in enumerate(ax[1:, :].T):
    trf.alpha = alphas[k]  # Set regularisation parameter
    trf.fit(np.c_[smooth_stimulus, event_stimulus], y[:, None])
    aax[0].plot(t_kernel, kernel, label='Kernel')
    trf.plot(ax=aax[1:], show=False)
    if k==0:
        aax[0].set_title('No regularisation')
    else:
        aax[0].set_title('With regularisation')
f.suptitle('Simulated TRF Estimation')
f.tight_layout()
plt.show()

CCA

CCA_Estimator performs canonical correlation analysis between a (possibly time-lagged) feature matrix X and a response matrix y, such as EEG channels. The minimal fit API mirrors the TRF estimator.

from pyeeg import CCA_Estimator
import numpy as np

rng = np.random.default_rng(0)
X = rng.standard_normal((1000, 4))      # (samples, features)
y = rng.standard_normal((1000, 8))      # (samples, channels)

cca = CCA_Estimator(tmin=0.0, tmax=0.1, srate=100)
cca.fit(X, y)
print(cca.coef_.shape)                  # (nlags, nfeats, nchans)

mCCA

mCCA finds components shared across several datasets (for example, one dataset per subject) with the same number of samples but potentially different numbers of channels.

from pyeeg import mCCA
import numpy as np

rng = np.random.default_rng(0)
datasets = [rng.standard_normal((500, 8)), rng.standard_normal((500, 16))]

mcca = mCCA(n_components=4)
mcca.fit(datasets)
print(mcca.SCs_.shape)                  # (samples, components)
shared = mcca.canonical_correlate_single(datasets[0], idx=0)

Connectivity

Connectivity measures such as Granger causality or the weighted Phase Lag Index (wPLI) quantify directed or phase-based interactions between channels.

from pyeeg import connectivity
import numpy as np

rng = np.random.default_rng(0)
X = rng.standard_normal((1000, 5))      # (samples, channels)

# Directed interactions via Granger causality
GC = connectivity.granger_causality(X, nlags=2)
print(GC.shape)                         # (nchannels, nchannels)

# Phase coupling via wPLI, averaged over the alpha band (8-13 Hz)
C = connectivity.wPLI(X, fs=100, fbands=(8, 13))
print(C.shape)                          # (nchannels, nchannels)

Simulation

The pyeeg.simulate module provides synthetic data generators, from simple autoregressive processes to biophysically inspired neural-mass models.

from pyeeg import simulate
import numpy as np

# Autoregressive process
x = simulate.simulate_ar(order=2, coefs=[0.5, -0.2], n=1000)

# A Hopf (Stuart-Landau) oscillator with a 10 Hz limit cycle
node = simulate.HopfOscillator(a=0.1, frequency=10.0, dt=0.001)
states, outputs = node.simulate(tmax=2.0)
print(outputs.shape)                    # (n_samples, 1)

Whitener

Whitener linearly transforms data so that its covariance becomes the identity matrix (PCA or ZCA whitening).

from pyeeg.preprocess import Whitener
import numpy as np

rng = np.random.default_rng(0)
X = rng.standard_normal((500, 8))

wh = Whitener(axis=0, zca=True).fit(X)
X_white = wh.transform(X)
print(X_white.shape)                    # (500, 8), ~identity covariance
X_back = wh.inverse(X_white)            # round-trip de-whitening

Robust TRF fitting

For data containing occasional large response artefacts, select the Cauchy loss with loss='cauchy'. The default robust_solver='irls' repeatedly solves weighted TRF problems using the existing SVD path. For small dense, unregularised problems, robust_solver='least_squares' uses SciPy’s nonlinear Cauchy solver instead. Sample weights are intentionally not combined with robust fitting yet.

trf = TRFEstimator(
    tmin=-0.2, tmax=0.5, srate=fs,
    loss='cauchy', robust_sigma=0.1,
    robust_max_iter=30,
)
trf.fit(X, y[:, None])
print(trf.robust_converged_, trf.robust_n_iter_)

Classical tvals_ and pvals_ are not computed for robust fits.

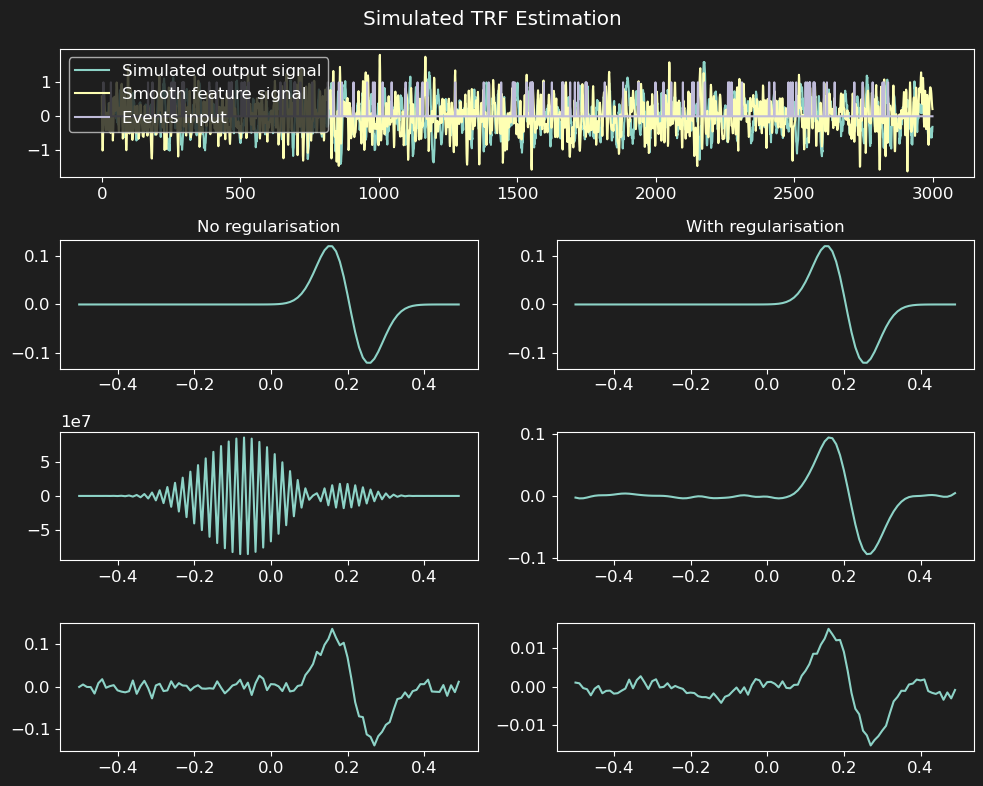

This will show a figure in the line of:

TRF estimation example
